Icom IP110H | WLAN Push to Talk Radio for Instant Team Comms
Contact us for a Special Price
The Icom IP110H is a wireless LAN push-to-talk transceiver that enables real-time, full-duplex communication across your existing Wi-Fi network. Compact, durable, and license-free, it connects teams instantly through your WLAN system or VPN-linked sites for smooth, wide-area coordination.
Key Features
- License-free communication using standard Wi-Fi (2.4 GHz / 5 GHz)
- Full-duplex talk-listen operation for natural team interaction
- Expandable coverage via wireless access points or VPN networks
- 1000 mW loud audio from internal speaker for clear voice
- Built-in Bluetooth® (optional VS-3 headset support)
- Over-the-Air programming and software updates
- Man Down, Lone Worker & Motion Detection safety alerts
- Audio recording and playback for instant message review
- USB-C charging and 20-hour operating time
- IP67 / IP54 waterproof and dust-tight protection
- WPA2 & WPA-Enterprise security encryption
- Compatible with IP100H WLAN radios and IP100FS PC software
ICOM IP110H WLAN Transceiver [Brochure]
⚠️ Note: Icom IP1100CV (Wi-Fi Radio System Controller) is Required
Product enquiry — need a formal quote, availability, technical help or an alternative? Send us your details below.
The Icom IP110H WLAN Transceiver brings simple, reliable communication to workplaces where Wi-Fi networks already exist. Designed for hotels, factories, hospitals, and office buildings, it provides real-time full-duplex voice—so users can talk and listen simultaneously, just like a phone call.
Because it operates over your existing wireless LAN, the IP110H needs no frequency license or communication fees. Coverage can expand easily by adding access points, or even across multiple sites using a VPN connection, allowing teams to talk between different facilities.
The radio delivers 1000 mW of clear, loud audio and supports group, individual, and telephone calls. With Bluetooth® compatibility, it connects to the optional VS-3 headset for discreet, wireless operation. The built-in safety sensors—including man down, motion, and lone worker alerts—help protect users in high-risk environments.

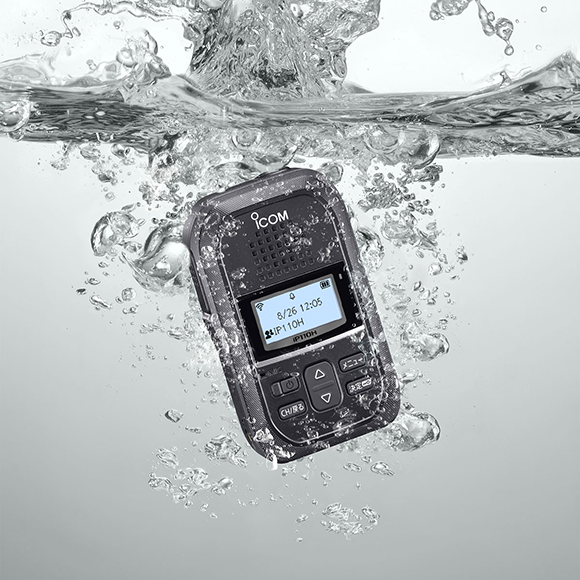

Engineered for durability, the IP110H meets MIL-STD-810G standards and carries an IP67 waterproof rating. It offers more than 20 hours of runtime per charge and recharges conveniently via USB Type-C™. Security is strong, with WPA2-Enterprise and WPA-PSK encryption ensuring data integrity across networks.

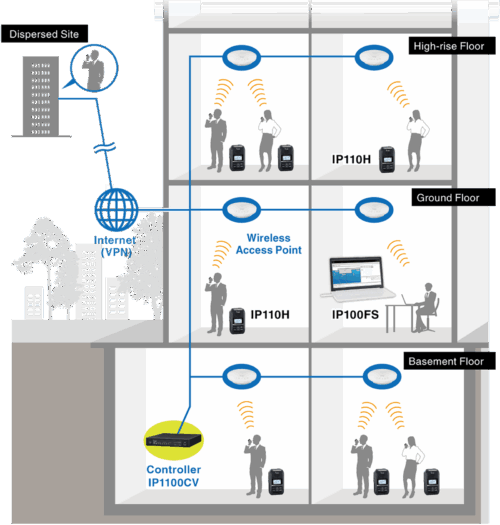

Integration is seamless: pair the IP110H with Icom’s IP1100CV WLAN controller, the IP100FS dispatch software, or the VE-PG4 RoIP gateway to link with LTE, analog, and digital radio systems.
The Icom IP110H is a dependable, scalable communication solution that keeps teams connected—whether on the same floor or across multiple sites.
Specifications (Highlights)
-
Wireless Standard: IEEE 802.11 a/b/g/n/ac
-
Frequency Range: 2.4–2.4835 GHz / 5.15–5.85 GHz
-
Audio Output: 1000 mW typ. (internal), 300 mW typ. (external)
-
Operating Time: > 20 hours
-
Operating Temp: –10 °C to +60 °C
-
Weight: 146 g
-
Ingress Protection: IP67 / IP54
-
Supplied Accessories: USB-C charger cable (OPC-2480), belt clip (MBB-1)
⚠️ Note: A wireless LAN infrastructure is required for operation. For multi-site use, a VPN connection or VE-PG4 gateway is needed to link dispersed locations.
Additional information
| Analog | No |
|---|---|
| Bluetooth | Yes |
| IP Rating | IP67 |
| Manufacturer | Icom |
| Power (W) | 1W |
| Product Type | Radio – Portable (Handheld) |
| Warranty | 2 Years |
| WiFi | Yes |
You may also like…
Find the right earpiece, headset or microphone
Accessories connect to two-way radios with different plug types. Check your radio’s connector before ordering, or call us on 1300 266 682 and we’ll confirm compatibility for you.
Frequently Asked Questions
How Far Can Two-Way Radios Reach?
Two-way radios operate using line-of-sight communication, which means buildings, hills, steel structures and other obstacles can affect range. Actual distance depends on the environment, radio power, antenna type and system setup.
Typical examples:
- Small offices or retail: hundreds of metres
- Warehouses and construction sites: 1–3 km
- Open outdoor areas: several kilometres
- Repeaters or Push-to-Talk over Cellular systems: Australia-wide coverage
If coverage is critical, Radio Industries can help design the right communication solution.
What Channels Can I Use?
In Australia, radios can operate on:
- UHF CB channels (1–80) – public shared channels available for general use
- Private licensed frequencies – dedicated channels licensed through ACMA for business use
- Digital radio systems – for improved audio and advanced features
- Push-to-Talk over Cellular (PoC) – communication over mobile networks and Wi-Fi
The right option depends on your application and operating environment.
Which Radio Is Best?
There is no one-size-fits-all answer. The best radio depends on:
- Your industry
- Required coverage area
- Team size
- Indoor or outdoor use
- Safety requirements
- Noise levels
- Whether you require UHF CB, licensed channels or nationwide communication
A warehouse team may need digital radios, while transport fleets may benefit from Push-to-Talk over Cellular systems.
Do I Need A Private Frequency?
Not always. UHF CB channels are suitable for many general communication applications.
However, private frequencies are recommended where:
- Communication is safety critical
- Teams operate around cranes or major construction projects
- Privacy is important
- Multiple users share the same location
- Interference must be minimised
Dedicated channels help improve reliability and reduce unwanted outside traffic.
What Is The Difference Between a Two-Way Radio, Walkie Talkie and Handy Talkie?
They generally refer to the same type of device.
In professional environments, Two-Way Radio is the preferred industry term. “Walkie Talkie” and “Handy Talkie” are commonly used for recreational or consumer products.
What Is The Difference Between Analogue and Digital Radios?
Analogue radios use traditional radio technology and are often suitable for basic communication requirements.
Digital radios provide:
- Clearer audio quality
- Better noise reduction
- Longer battery life
- Improved coverage performance
- Advanced features such as private calling and GPS
Digital systems are commonly used by businesses requiring higher performance and reliability.
What Is Push-to-Talk Over Cellular (PoC)?
Push-to-Talk over Cellular works like a two-way radio but uses 4G, 5G and Wi-Fi networks instead of traditional radio signals.
Benefits include:
- Australia-wide coverage
- GPS tracking
- Group communication
- No repeater infrastructure required
- Easy expansion across multiple locations
This solution is ideal for transport, security, events and nationwide operations.
Can Two-Way Radios Work Australia-Wide?
Traditional radios have distance limitations unless repeaters are used.
For nationwide communication, many businesses choose Push-to-Talk over Cellular systems, which operate across mobile networks and Wi-Fi.
Can Different Brands Of Radios Communicate Together?
Sometimes.
Compatibility depends on:
- Frequency settings
- Channel programming
- Analogue or digital mode
- Signalling protocols (IDAS, DMR, NXDN, TETRA, P25)
- System configuration (Capacity Plus, Capacity Max, P25)
Even radios from different manufacturers may communicate if correctly programmed.
Do Radios Need Programming Before Use?
Many professional radios require setup before deployment.
Programming may include:
- Channel configuration
- Private frequencies
- User groups
- Emergency functions
- Scan lists
- Button customisation
Radio Industries can pre-program and configure systems before dispatch.
Can I Use Headsets With Two-Way Radios?
Yes. Many industries use headsets and accessories to improve communication and safety.
Popular options include:
- Noise-cancelling headsets
- Hearing protection communication headsets
- Earpieces
- Remote speaker microphones
- Push-to-talk accessories
These are commonly used in construction, security, industrial sites and events.
Are Two-Way Radios Waterproof?
This depends on the model.
Many commercial radios include protection ratings such as:
- IP54 – Protected against limited dust ingress and resistant to water splashes from any direction. Suitable for indoor use, retail, warehouses and light outdoor environments.
- IP67 – Fully protected against dust and can withstand temporary immersion in water up to 1 metre for up to 30 minutes. Commonly used on construction sites, security operations and harsh environments.
- IP68 – Fully dustproof with enhanced water protection beyond IP67 standards. Exact depth and duration vary by manufacturer, but these radios are designed for more demanding environments with heavy dust, rain and exposure to water.
The right rating depends on your work environment.
Can Radios Be Used On Construction Sites?
Yes. Two-way radios are widely used across construction projects for coordination, safety and productivity.
Many sites use:
- Rugged digital radios
- Hearing protection headsets
- Vehicle-mounted radios
- Dedicated licensed frequencies
Radio Industries can recommend systems suited to site conditions and OH&S requirements.
Do You Offer Repairs And Ongoing Support?
Yes.
Radio Industries provides:
✔ Repairs and servicing
✔ Programming and setup
✔ Genuine parts and accessories
✔ System upgrades
✔ Technical support
✔ Australia-wide assistance
We support customers long after the initial purchase.
Still Not Sure Which Communication Solution You Need?
Every site and business is different. Speak with Radio Industries for expert advice on choosing the right radio communication system for your team.
