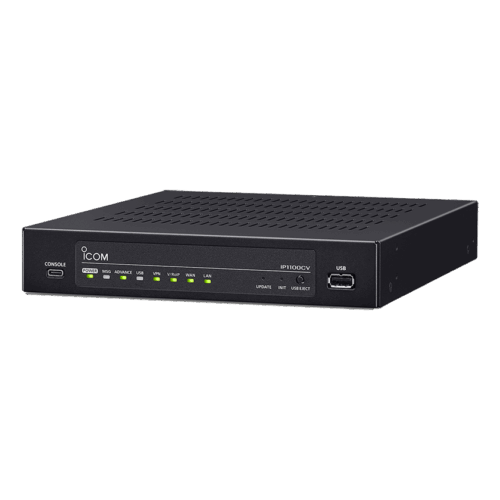

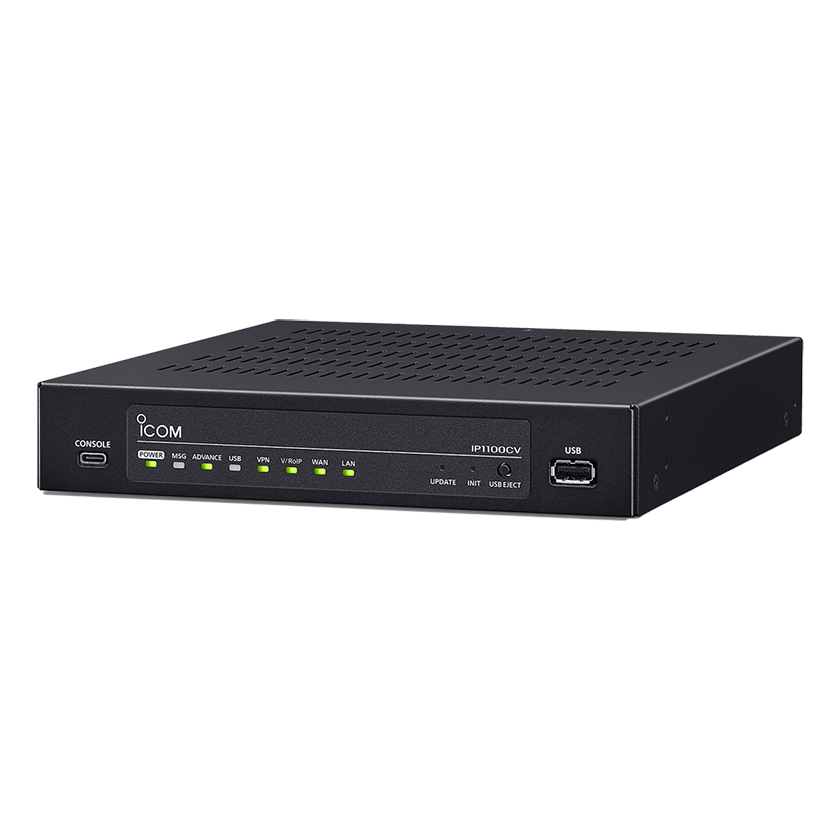

Icom IP1100CV | Wi-Fi Radio System Controller
Contact us for a Special Price
The Icom IP1100CV is a Wi-Fi transceiver controller that connects and manages up to 300 Icom IP110H or IP100H Wi-Fi radios across local or multi-site networks. With VPN capability, auto provisioning, and web-based setup, it delivers scalable, secure, and centralised communication control for your team.
Key Features
- Controls up to 300 Wi-Fi radios (including IP100FS terminals)
- Auto provisioning for quick radio setup and configuration
- Up to 500 programmable call addresses for group and individual calls
- 2.5 Gbps WAN port with built-in VPN router for multi-site linking
- License-free operation using standard Wi-Fi networks
- Web browser programming for easy configuration
- Call recording to external USB flash drives
- Firmware updates and online maintenance tools
- 19-inch rack-mountable design (1U, half-width with MBF-6 bracket)
- Security slot helps prevent equipment theft
- Compatible and required to operate with IP110H, IP100H, and VE-PG4 RoIP Gateway
Product enquiry — need a formal quote, availability, technical help or an alternative? Send us your details below.
The Icom IP1100CV Wi-Fi Transceiver Controller is the core of Icom’s WLAN radio system. It connects, manages, and extends communication for IP110H and IP100H radios over standard Wi-Fi networks — without requiring radio licenses or cellular subscriptions.
By installing the IP1100CV on your IP network and deploying Wi-Fi access points, you can create a scalable communication system that covers offices, factories, or even multiple sites linked by VPN. The controller manages up to 300 Wi-Fi radios (including IP100FS dispatch software terminals), ensuring every user stays connected.
With its auto provisioning feature, radio setup becomes effortless. The IP1100CV automatically assigns settings to new devices as they connect, reducing deployment time and human error. It also supports up to 500 call addresses for all, group, or individual communication — ideal for large teams or multi-department environments.
For cross-site communication, the IP1100CV’s built-in VPN router and 2.5 Gbps WAN port allow secure linking between head offices and remote branches. Staff across different locations can communicate seamlessly using their Wi-Fi radios as if they were on the same network.
Maintenance is simple. Settings can be adjusted through a standard web browser, or exported/imported using a USB drive. The controller even supports audio call recording to an external USB device for review or logging.
The 1U, half-width rack design fits neatly into a 19-inch server rack using the optional MBF-6 mount, keeping your installation professional and organised.
With enterprise-grade reliability and advanced network functions, the Icom IP1100CV is the ideal backbone for Wi-Fi radio systems that need to scale, connect, and perform.
Specifications
-
Power Supply: 12 V DC ± 10%, < 33 W
-
Operating Temp: 0 – +40 °C
-
Humidity: 5 – 95 % (non-condensing)
-
Dimensions: 213 × 36.8 × 242 mm
-
Weight: 1.5 kg
-

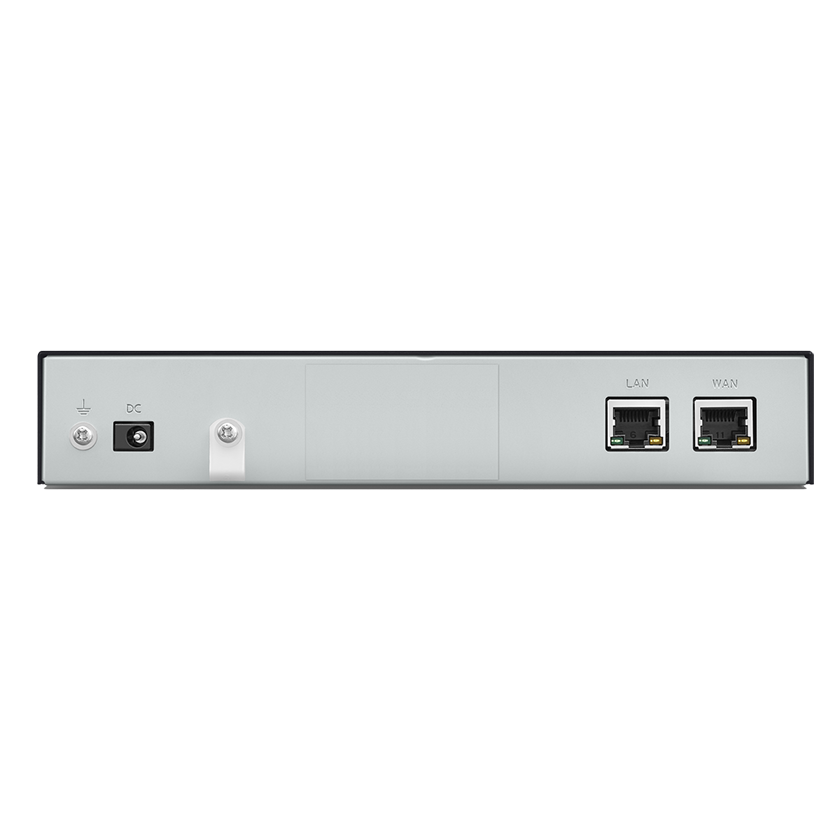

WAN Port: 2.5 Gbps RJ-45 (Auto MDI/MDI-X)
-
LAN Port: 2.5 Gbps RJ-45 (Auto MDI/MDI-X)
-
USB Ports: USB 3.0 Type-A × 1 / USB 2.0 Type-C × 1
-
Compliance: FCC Part 15 B / ICES-003 / EN 55032 / EN 55035 / EN 60950-1
-
Accessories: Magnet legs, screws, clamp, flat washer, and screw (AC adapter sold separately)
⚠️ Note: The AC power adapter is not included. For multi-site communication, a VPN link between IP1100CV units or with a VE-PG4 gateway is required.
