Icom IC-M430E 25W VHF Marine Radio with Class D DSC
$925.00 Inc GST
Icom IC-M430E 25W VHF Marine Radio – a compact, fixed-mount marine radio with Class D DSC, built-in GNSS and a clear colour TFT display.
- 25W/1W VHF marine communication and DSC distress capability
- Slim flush-mount design for tight helm spaces
- IPX7 water protection, active noise cancelling and AquaQuake
- NMEA 2000 / NMEA 0183-HS connectivity; optional second station
Ideal for recreational boats, fishing vessels and commercial marine operations. Request a quote or speak with a marine radio specialist.
Product enquiry — need a formal quote, availability, technical help or an alternative? Send us your details below.

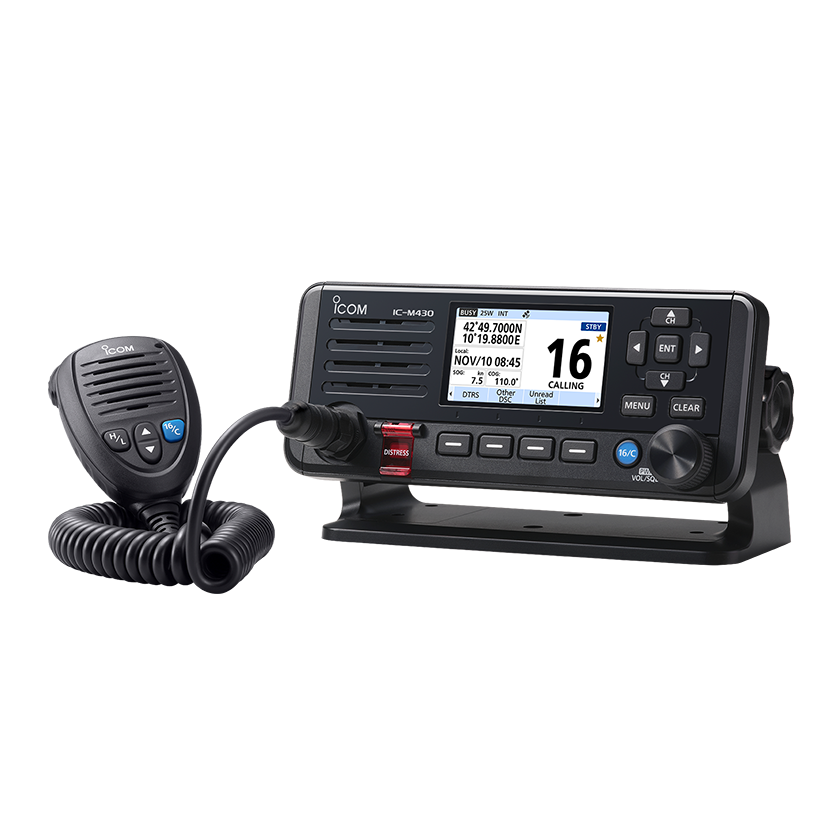

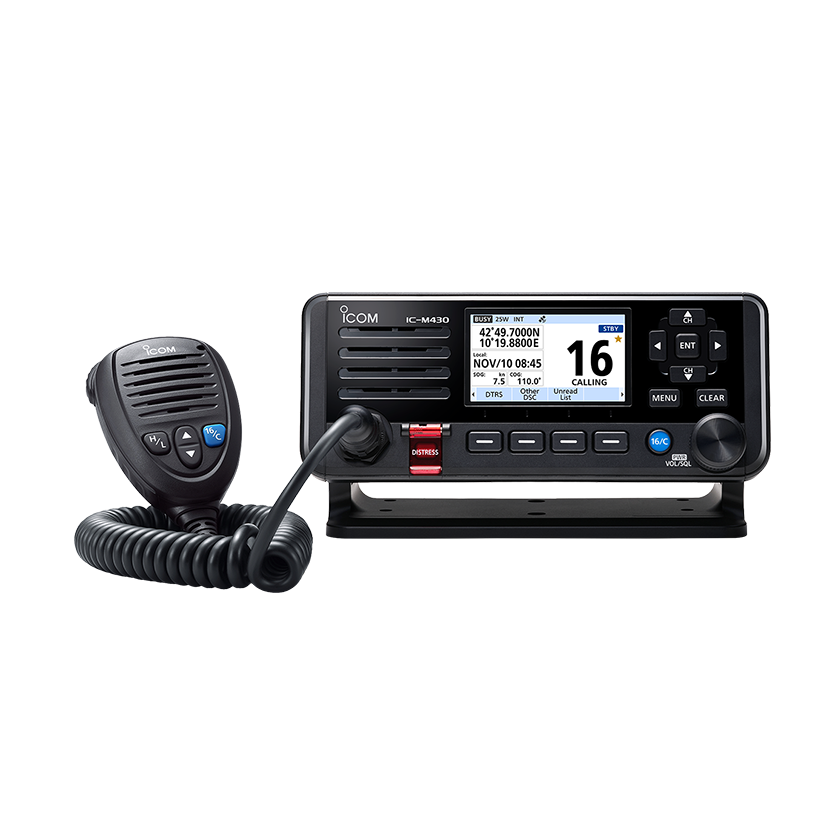

Icom IC-M430E VHF Marine Radio – Clear Communication on the Water
The Icom IC-M430E VHF marine radio is a compact, fixed-mount radio for boats. It lets you talk to other vessels, marine stations and relevant services using marine VHF channels. Whether you’re heading out fishing, operating a workboat or upgrading the radio at your helm, it’s designed to make everyday communication simple and reliable.
It has a bright colour screen, a powerful 25W transmitter and a slim body that fits neatly into many boat dashboards. The IC-M430E also includes safety features such as Class D DSC and built-in GPS (GNSS). It’s a marine VHF radio, not an Australian UHF CB radio.
Why Choose the Icom IC-M430E?
On a boat, you need a radio that’s easy to see, hear and operate. The IC-M430E provides clear controls and three screen modes for sunny days, darker conditions and night use. Its built-in noise cancelling helps your voice come through more clearly when there’s wind or engine noise around you.
Class D DSC (Digital Selective Calling) adds a dedicated distress-call function and other calling options. Once the radio has been correctly set up with an MMSI, its DSC features can help you send a digital call with relevant identifying information. A suitable marine antenna and correct installation are essential for effective communication.
Key Features and What They Mean for You
- 25W marine VHF power: Communicate with other vessels and marine stations over suitable marine VHF channels. You can also select 1W for shorter-range use where appropriate.
- Class D DSC safety calling: A dedicated distress button and digital calling capability, subject to correct MMSI setup.
- Bright colour screen: Choose Light, Dark or Night display modes for easier reading from the helm.
- Compact, slim design: The 52.6 mm-deep body suits many installations where dashboard space is limited.
- Built-in GPS: The integrated GNSS receiver supports position-related functions. An optional external GPS antenna is available for enclosed mounting locations.
- Noise cancelling and loud audio: Better suited to noisy boating environments.
- IPX7 waterproof rating: Built to cope with marine conditions when fitted correctly.
- Second-station option: Add a compatible Icom CommandMic so the radio can also be controlled from another position.
- Connection to other marine equipment: NMEA 2000 and NMEA 0183-HS let you integrate the radio with compatible onboard electronics.
Ideal for Recreational and Commercial Boats
Fishing boats: Stay in contact with nearby vessels and marine stations while out on the water.
Recreational and family boats: Keep a dedicated marine radio at the helm instead of relying on mobile phone coverage.
Charter vessels and workboats: Give crew a straightforward way to make voice calls and access appropriate marine safety channels.
Boats with a second helm: Use an optional CommandMic to control the radio from another location, subject to installation and cabling.
Works with AIS and Other Marine Equipment
The IC-M430E can connect to compatible equipment through NMEA 2000 or NMEA 0183-HS. For example, pair it with the Icom MA-510TR Class B AIS transponder. The AIS unit shows information about nearby AIS-equipped vessels, while the radio handles voice communication. Icom supports selecting an AIS target for an individual DSC call when the equipment is connected and configured correctly.
For a complete installation, you may also need a marine antenna, mounting accessories, suitable cables and professional setup. Our team can help confirm what suits your vessel.
Icom IC-M430E Technical Specifications
| Type | Fixed-mount VHF marine radio |
|---|---|
| Transmit power | 25W / 1W |
| Frequency range | Marine VHF; TX 156.025–161.425 MHz, RX 156.050–162.000 MHz |
| Safety calling | Class D DSC |
| Display | Colour TFT LCD, Light / Dark / Night modes |
| GPS | Built-in GNSS receiver and antenna |
| Connections | NMEA 2000, NMEA 0183-HS |
| Waterproof rating | IPX7 |
| Operating voltage | 12V DC nominal |
| Size | 202 × 82 × 52.6 mm (W × H × D) |
What’s Included in the Box?
- IC-M430E fixed-mount VHF marine radio
- HM-205RB hand microphone and hanger
- DC/AF/DATA connector cable
- Mounting bracket kit
- MBA-18 flush-mount gasket
A separate marine VHF antenna, optional second-station microphone and additional installation accessories may be required. Please check your setup before ordering.
Download the Icom IC-M430E Brochure
Want the manufacturer’s specifications, product diagrams and further details? Download the official Icom IC-M430E brochure (PDF).
You can also view the IC-M430E on Icom Australia’s website.
Frequently Asked Questions
Is the IC-M430E suitable for my boat?
It’s suitable for many recreational boats and commercial marine vessels that need a fixed-mount VHF radio. Check the available dashboard space, power supply and antenna arrangements before installing it.
Does the radio need mobile reception to work?
No. Marine VHF radio uses radio signals rather than the mobile network. Actual range depends on the antenna, installation, surrounding conditions and other vessels’ equipment.
Can it make a distress call?
Yes. It supports Class D DSC distress calling, but the DSC function must be correctly set up, including a valid MMSI. Follow marine radio operating and safety requirements.
Does it already have AIS vessel tracking?
No. The IC-M430E is a VHF voice radio. For AIS vessel information, use a compatible AIS device such as the Icom MA-510TR.
Can I install a second microphone?
Yes. An optional compatible Icom CommandMic and suitable extension cables can provide a second control position.
Get Advice from Radio Industries
Radio Industries supplies and supports complete communication solutions, not just individual radios. We can help you choose the right marine VHF radio, antenna, accessories and connections for your boat. Speak to our communication specialists or request a quote.
Additional information
| Manufacturer | Icom |
|---|---|
| Product Type | Radio – Vehicle Mounted |
| Frequency Band | VHF Marine |
| Power (W) | 1W, 25W |
| IP Rating | IPX7 |
| GPS | Yes |
| Screen | Yes |
| Colour | Black |
| Analog | Yes |
| DSC | Class D |
| NMEA Connectivity | NMEA 2000, NMEA 0183-HS |
| Installation | Fixed mount, Flush mount |
| Marine AIS Compatibility | Icom MA-510TR |
